| Specification |
|
| Waveforms |
| Sine |
0.5kHz~ 8kHz |
|
| Square |
0.5kHz~ 8kHz |
|
| Triangle |
0.5kHz~ 8kHz |
|
| High frequency wave |
50MHz |
|
|
| Output Amplitude |
| Sine |
430mV ~ 1.8V |
|
| Square |
430mV ~ 1.8V |
|
| Triangle |
430mV ~ 1.8V |
|
| High frequency wave |
5V |
|
|
| Input |
9V battery or Power Adapter with 4.5V - 7V with 600mA output Input voltage should not exceed 9V for proper operation. |
|

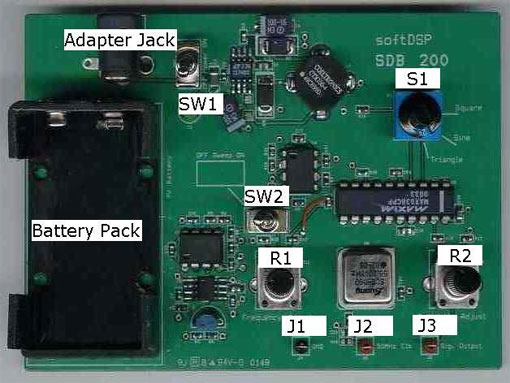

| Functions |
|
| SW1 |
Power On/Off |
|
| SW2 |
Sweep On/Off |
|
| S1 |
Sine/Square/Triangle selection |
|
| J1 |
GND |
|
| J2 |
50MHz singnal output |
|
| J3 |
signal output |
|
| R1 |
Frequency settingf |
|
| R2 |
Amplitude setting |
|
 |
|
|
| Example (data captured from SDS 200) |
|

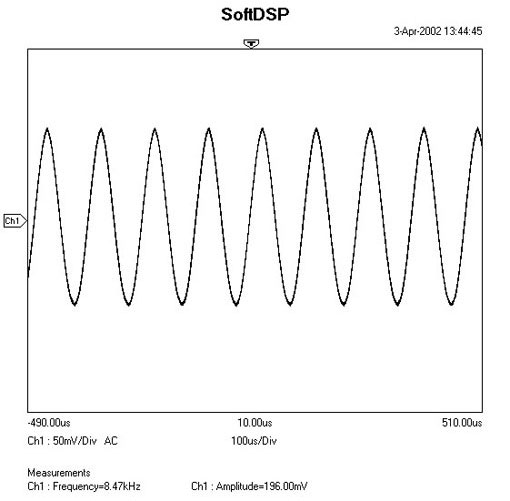

- Sine wave
 |
|

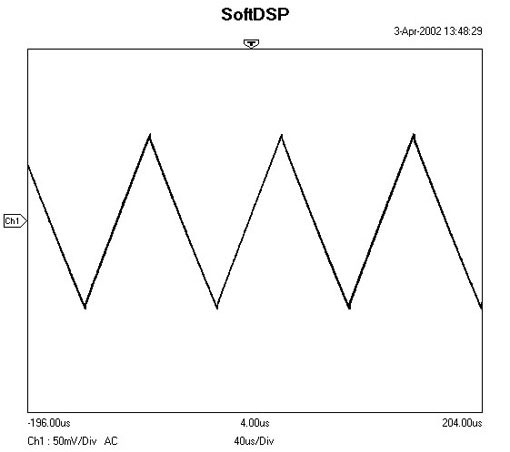

- Triangle wave
 |
|

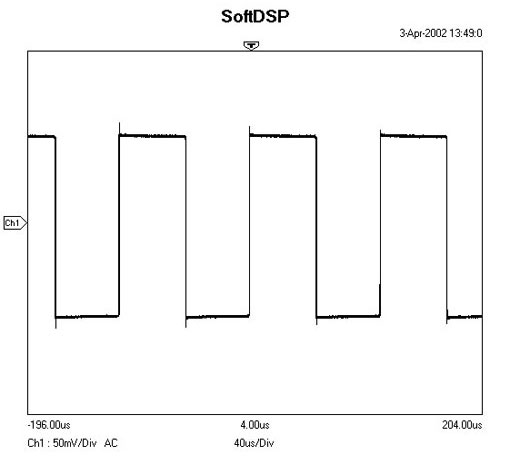

- Square wave
 |
|

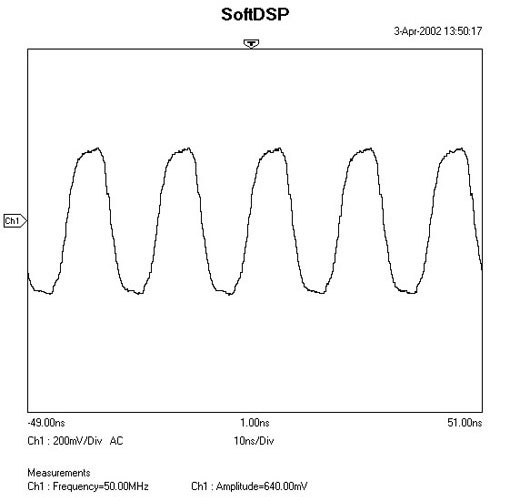

- 50MHz signal
 |
|

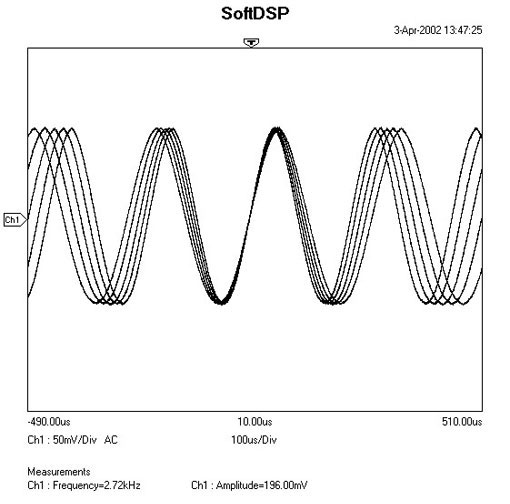

- Sweeping signall
 |
|
|
